Gypsum Ceiling Board Production Line

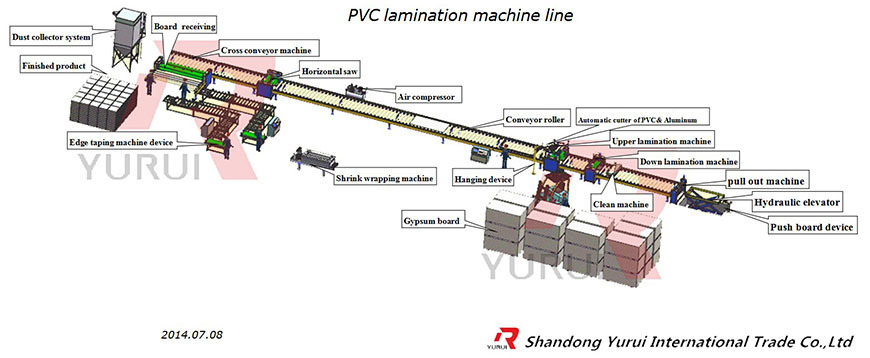

The production line is controlled by computer and conveyed by chains and wheels, automatically accomplishing coating, heating, laminating, cold pressing and hot pressing. It is of advanced technology, compact and reasonable structure, simple and reliable operation. nice and good appearance.

ONLINE MESSAGE

Equipment Overview

The production line is controlled by a computer and conveyed by chains and wheels, automatically accomplishing coating, heating, laminating cold pressing, and hot pressing. It is of advanced technology, compact and reasonable structure, and has simple and reliable operation. nice and good appearance.

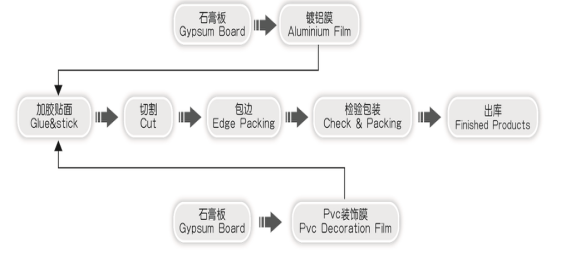

Flow chart：

Main parameters

Capacity

2~3million sqm/300 days(basis of calculation:L:595mm,T:7mm,W:595mm,weight: 5.5kg/㎡,8-10hrs/shift )

Finished board specification

Length×width：595×595mm,600×600mm,603×603mm,1200×600mm
Thickness：7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm

Request for the raw material

Name	Specification	Package	Kg /package	20'container loading quantity	Remark
PVC film	width :1.230m one roll =600m	Roll	57kg	86340sqm/70200m/ 117rolls /6670kg
Aluminum foil	length:1.230m One roll =125kgs=10000m	Roll	125	180rolls/1800000m/ 23000kg	1 kg could stick about 100sqm gypsum board
Glue for PVC	50kgs/barrel	Barrel	50kg	410barrels/20500kg	1kg could stick 35~40sqm
Glue for aluminum	50kgs/barrel	Barrel	50kgs	410barrels/20500kg	1kg could stick 58~64sqm

Remark:The above information is just for your reference.

The place and workshop requirements

PVC lamination production line, building area of 1000 square meters

Worker's arrangement

Working days per year：300days

Shift：1 shift

Working hours per shift：8 hours/shift

Personnel allocation:

System	Workers needed
Forklift operator	1worker/shift
Machine operating	3workers/shift
Packing system	3 worker/1shift
Monitor	1 worker/1shift
Total	8workers/shift

Equipment advantages

Technology: Gypsum PVC ceiling machine we designed has national invention patent, and it’s high degree of automation.

Perfect design system: We can design and improve the scheme according to customer's site and other situation,and make the machinery completely conformity with user’s needs.

Production process: Our workers from the engineers to general production personnel all have rich experience in machinery design and manufacturing.

After-sale service:

Our company established a perfect after-sale system, especially at the beginning of the line installation we began to train the users on how to use and maintain the equipment.
If the user has problems that unable to solve on their own during the operation, our engineers will give the phone or in-person to help users solve the problem the first time.
